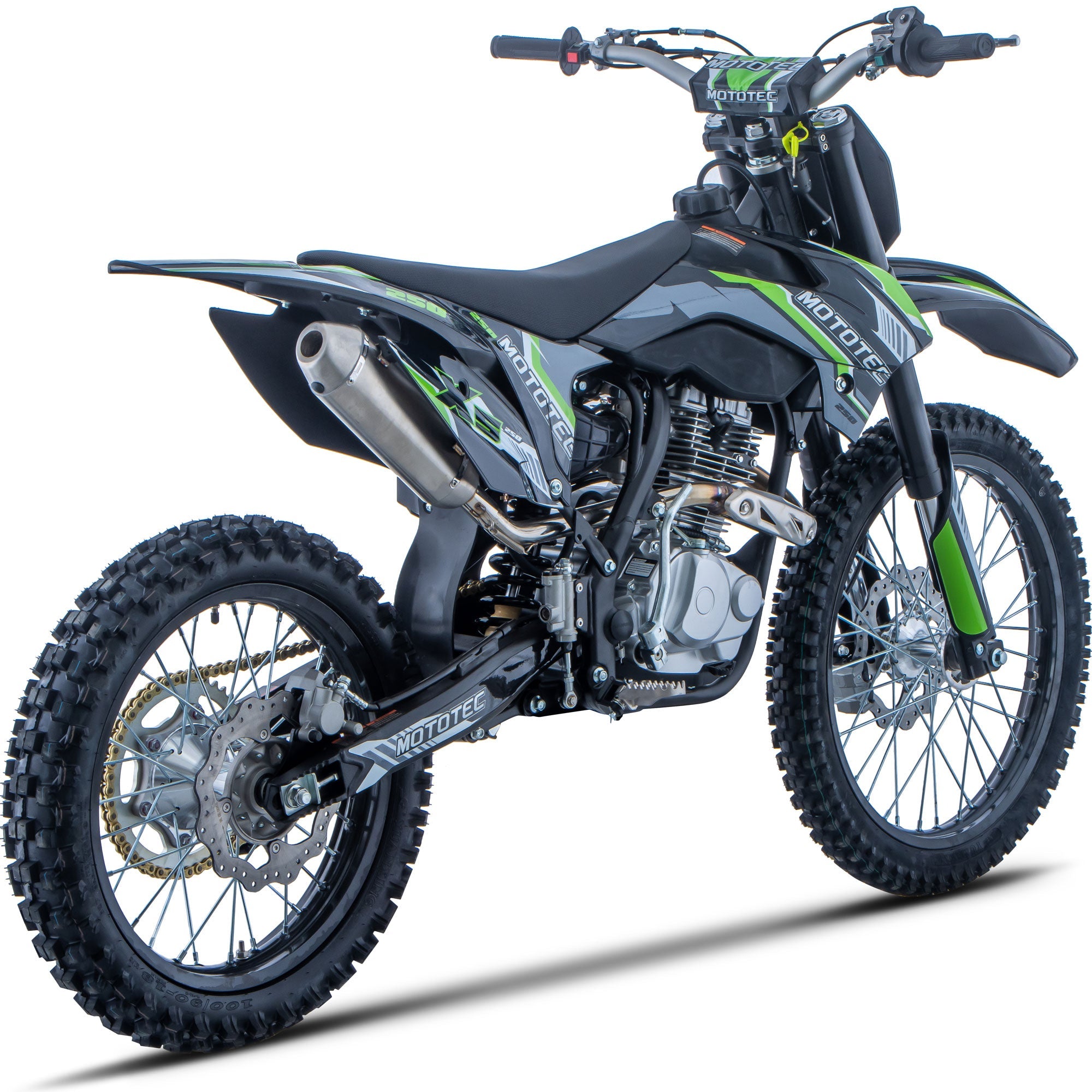

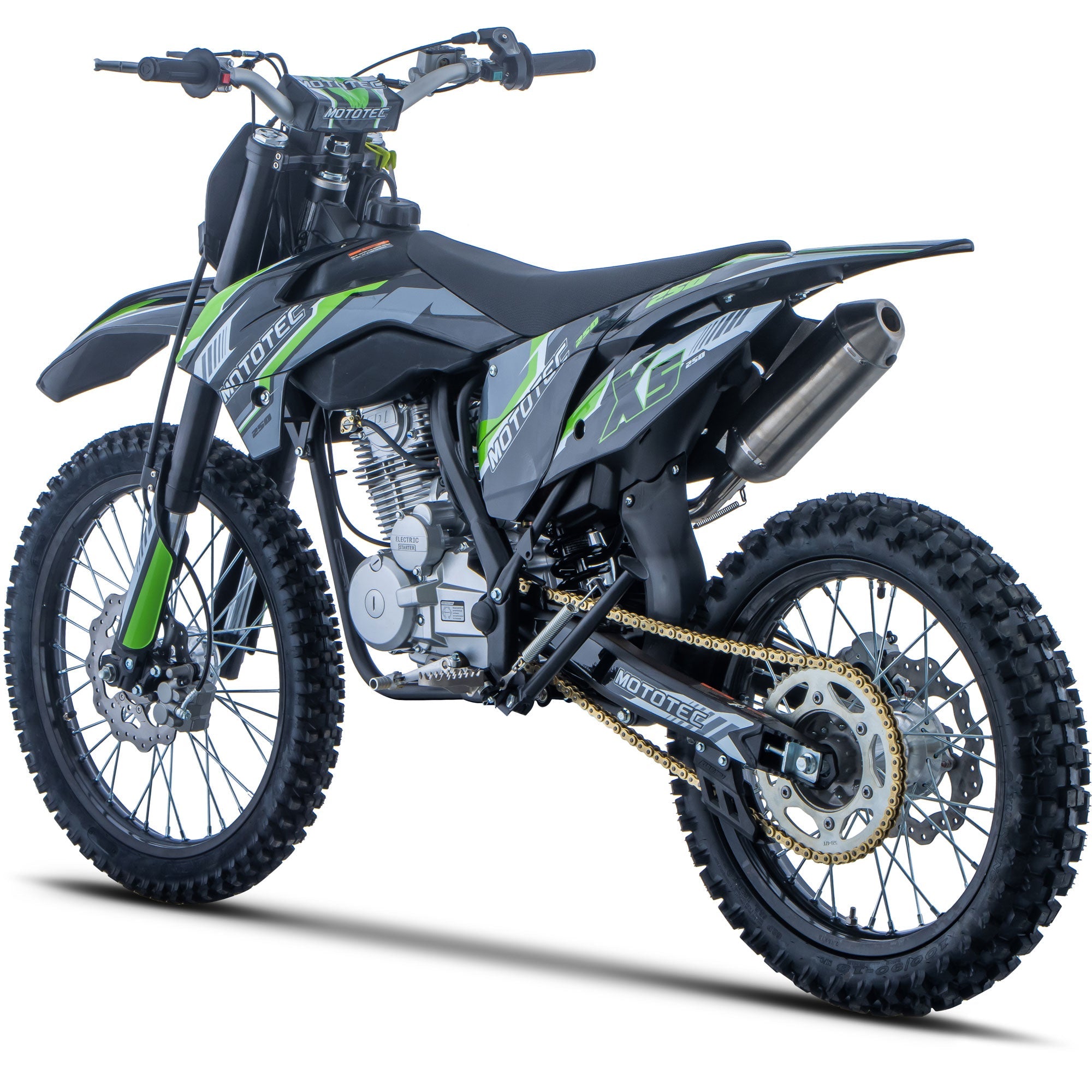

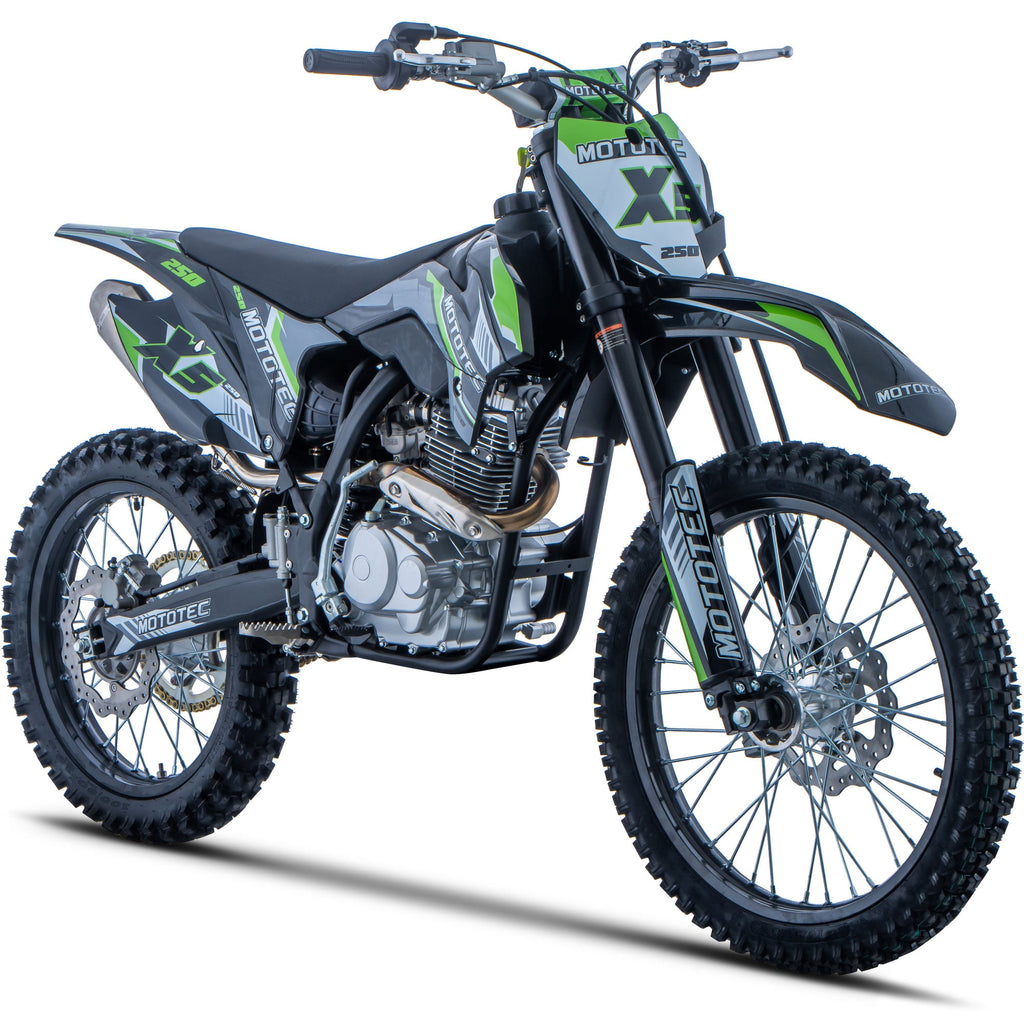

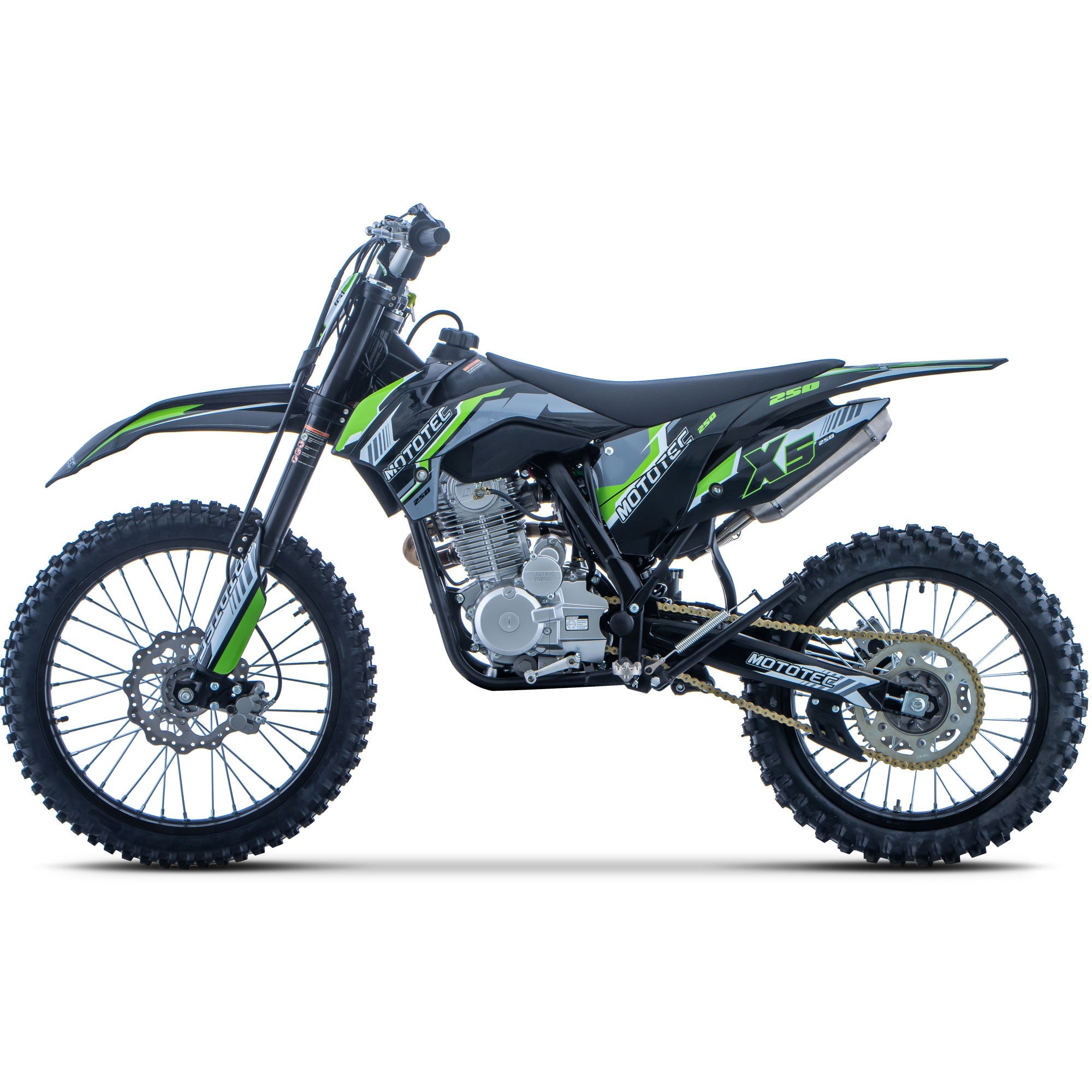

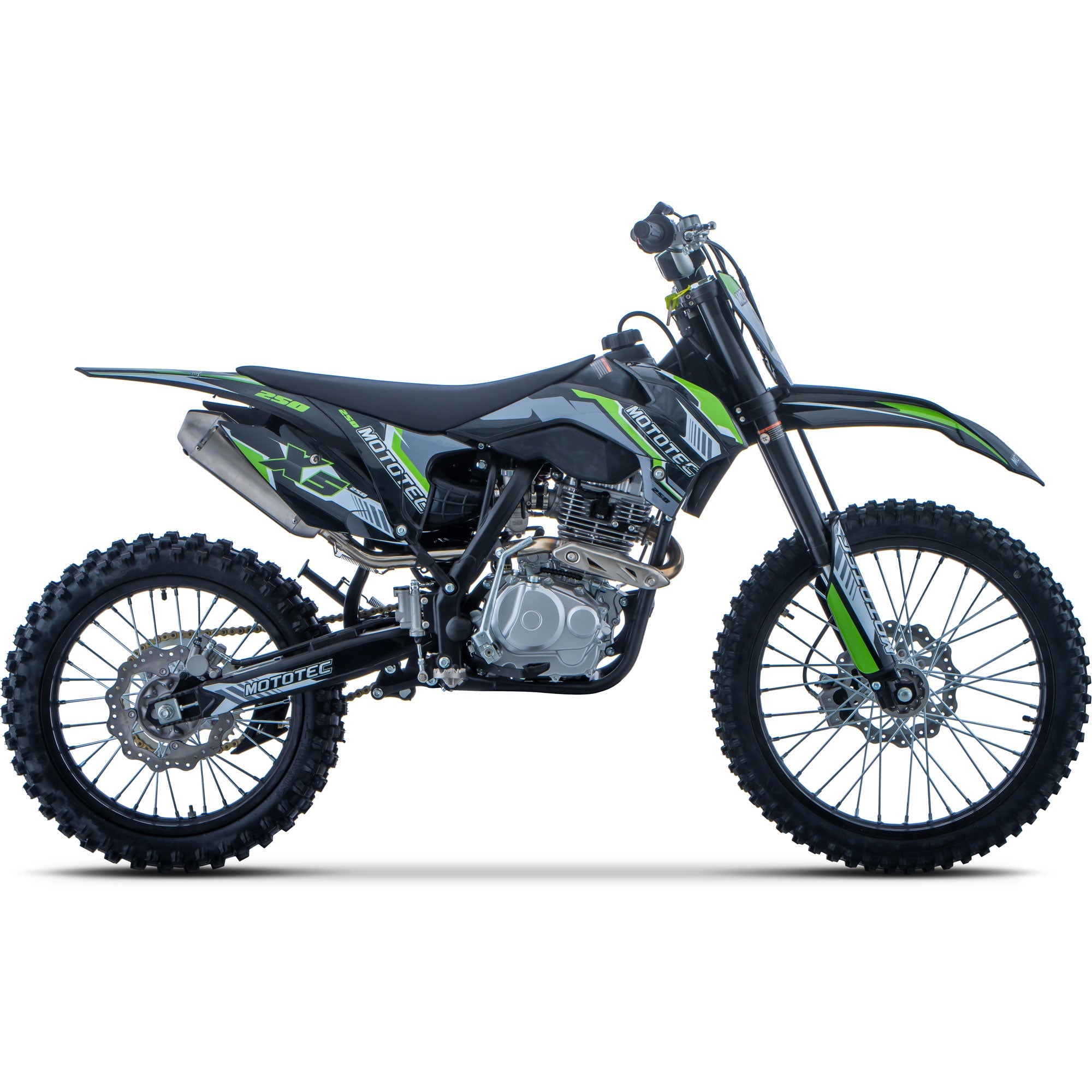

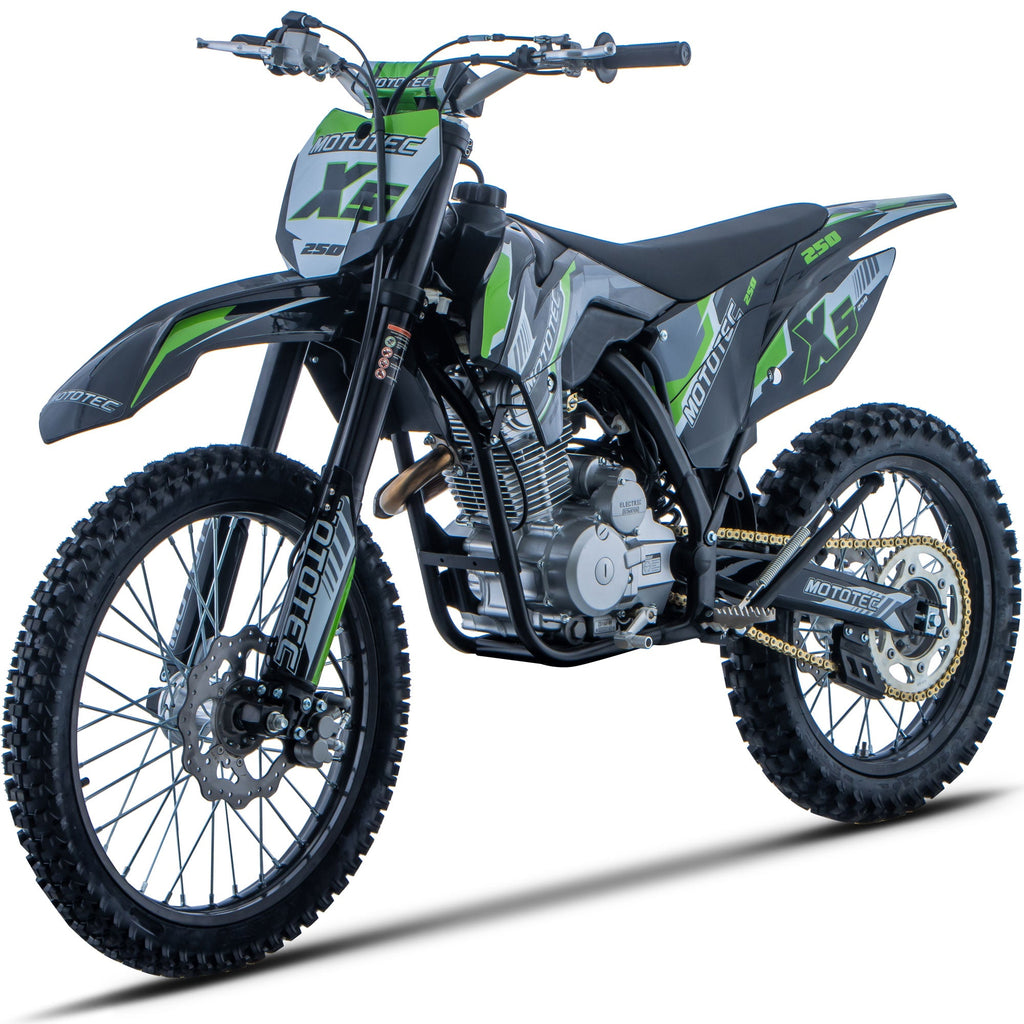

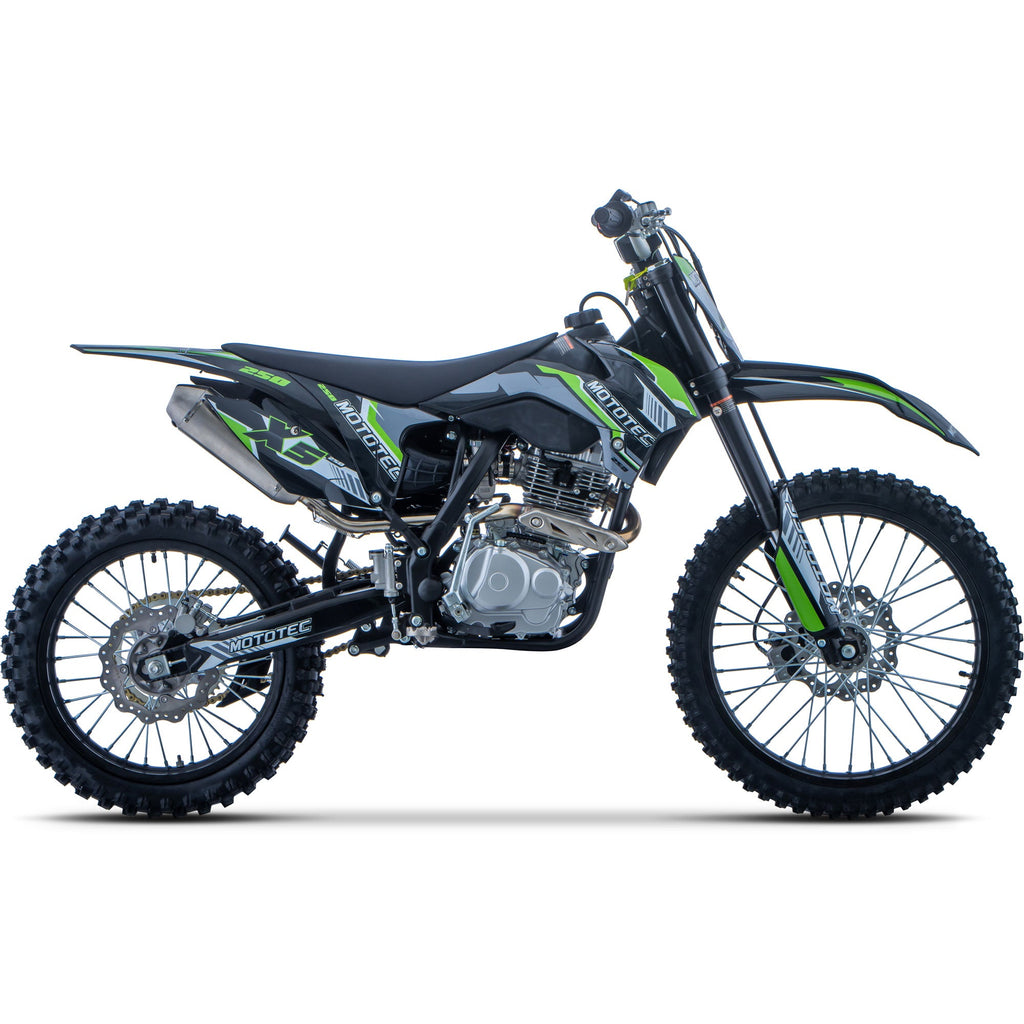

The largest and most powerful dirt bike in the MotoTec X series, built for an experienced 16 and up rider who wants real displacement and the highest top speed in the lineup.
The X5 runs a 250cc 4-stroke, air cooled engine making 16 hp through a 5-speed manual wet multi-plate transmission with a clutch lever, plus electric and kick start. It carries the biggest wheels in the X series, a 21 inch front and 18 inch rear, with an inverted hydraulic adjustable front fork and dual piston front disc brakes, reaching a 62 mph top speed limited by an adjustable speed limiter with 60 miles of cruising range per tank. Built for off-road riding, not for public roads.
Why this model
- 250cc engine and 16 hp make this the most powerful bike in the X series lineup.
- 21 inch front and 18 inch rear wheels, the largest in the series, roll over rough terrain with more stability.
- 5-speed manual transmission with a clutch lever gives full control for an experienced rider.
- Adjustable speed limiter caps the 62 mph top speed until a rider is ready for it.
- Dual piston front and single piston rear disc brakes provide strong stopping power at higher speeds.
Key specs
| Motor |
250cc 4-stroke single cylinder, air cooled, 16 hp @ 7000 rpm |
| Top speed |
62 mph (with adjustable speed limiter) |
| Brakes |
Front dual piston disc, rear single piston disc |
| Suspension |
Front inverted hydraulic adjustable fork (180mm travel), rear non-adjustable shock (90mm travel) |
| Tires |
Front 80/100-21 (21 in), rear 100/90-18 (18 in) |
| Frame |
Central tube, high strength steel |
| Seat height |
36 in |
| Max rider weight |
260 lbs |
| Recommended age |
16 and up |
| Weight |
232 lbs (dry) |
| Assembly |
Required |
Fit, power and setup
Some assembly is required out of the box, and it ships in one box weighing 298 lbs, so expect a freight style curbside delivery with a scheduling call from the carrier. It runs a 6.5 liter (1.72 gallon) fuel tank with SAE 10W/40 engine oil, seasonal grades noted by MotoTec. This bike is built for dirt, grass, and off road trails, wet or dry, not pavement.
Good to know
- Recommended for riders 16 and up, with a 260 pound weight limit, the highest in the X series.
- This is the biggest displacement and highest top speed bike in the X series, best suited to riders with real dirt bike experience.
- Off road use only. Not street legal and cannot be registered for road use.
- Wear a helmet and protective gear. Riders under 18 need adult supervision.
MotoTec states this bike is EPA approved but it does not meet California emissions standards, so it is for competition or off road use only and cannot be registered for street or OHRV use or with the California DMV. Check your state and local regulations before you buy. It ships by freight due to its weight, with curbside delivery and a scheduling call from the carrier, and it carries 60 days of parts replacement coverage from MotoTec.
